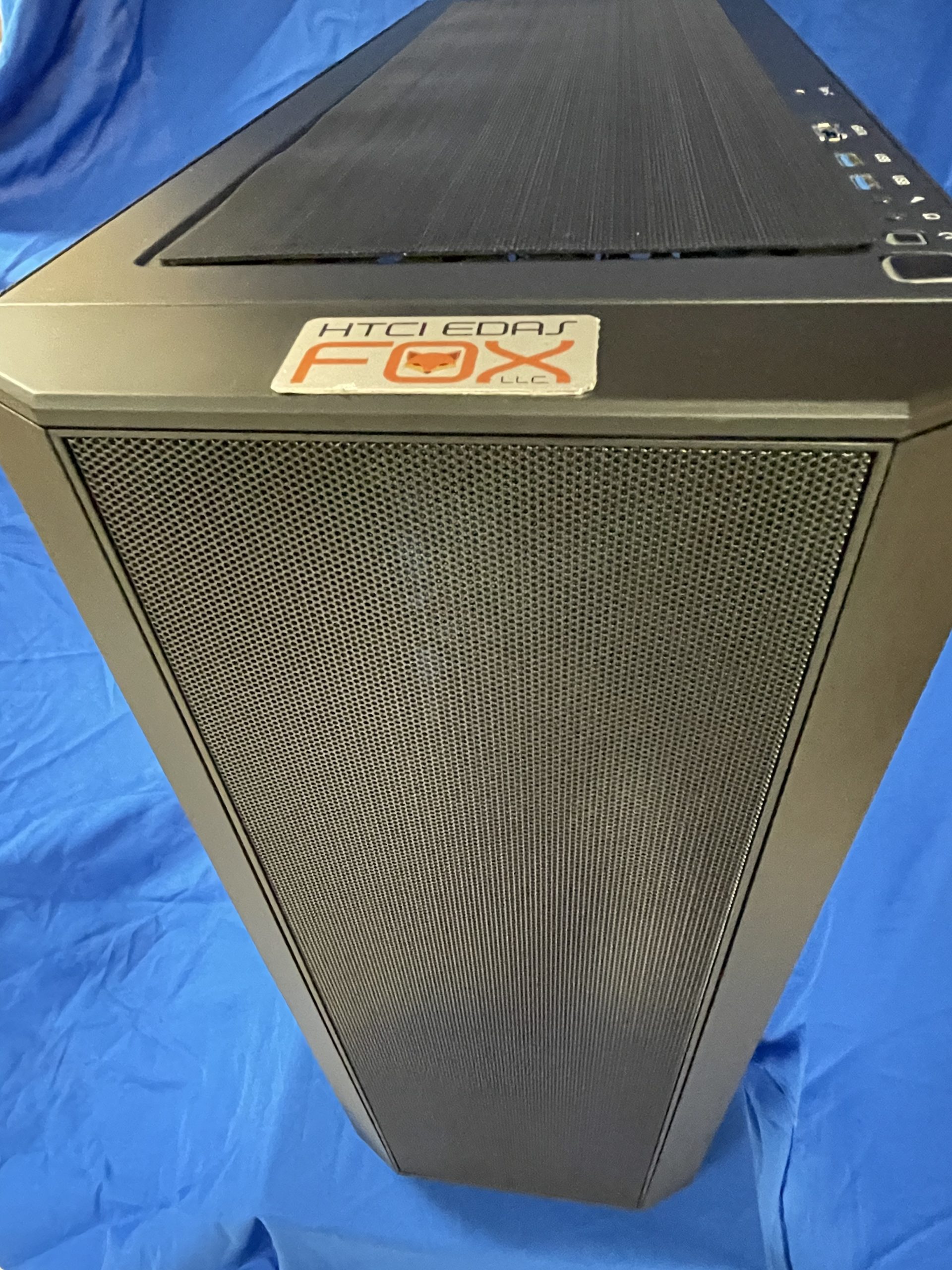

EDAS FOX Data Server 200 TB Scalable to 400 TB

EDAS FOX Data Server 200 TB Scalable to 400 TB

Please Email or Call for Pricing



Add to quote loading
Categories: Intel Forensic Computers, Meet Our Family of Computers, Servers and Storage
  • Description
  • Tech Specs

Description

  • An industry setting standard of 3 years parts and depot labor warranty.
  • A High Speed Xeon W5-2445 Ten Core Processor clocked at 3.1Ghz Cooled by a Sealed Water Cooling System to give you stable high-speed performance.
  • 64GB of High Speed High Capacity DDR5 4800 Memory
  • An NVidia Quadro P400 with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
  • A ultra-fast 2TB NVMe M.2 OS Drive to give you lightning fast access to your EDAS FOX System
  • Storage RAID 20 x 10TB 7200 RPM 6Gb/s Hard Drive Disks
  • Dual 10Gb Lan Ports
  • A highly efficient 850 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
  • Call for pricing on requested upgrades from specifications

Supported CPU

CPU Socket Type
LGA 4677
CPU Type
Xeon W5

CPU

Processor Number
Xeon W5-2445
Number of Cores/Threads
10 / 20
CPU Speed
3.1GHz / 4.6GHz Turbo
Cache
26.25MB Intel Smart Cache
Lithography
Intel 7
Heatsink
High Performance Liquid Cooled Solution

Chipset

Chipset
W790

Memory

Slots
8x DIMM
Speed
DDR5-4800
Memory Installed
64GB (2 x 32GB)
Maximum Memory
2TB

Expansion Slots

PCIe 5.0 x16
7

Video Card

Chipset
NVIDIA
GPU
Quadro P400
Memory
2GB GDDR5
Mini DP
3 (3x mDP to DP Adapters)

Storage Devices

SATA 6Gb/s
8
M.2 32Gb/s
3

RAID Controller

PCIe RAID Controller
24 Channel SATA/SAS 12Gb/s

Storage Configuration

OS Drive
2TB NVMe M.2
Storage
20 x 10TB 7200 RPM 6 Gb/s Hard Drive Disks

On-board Audio

Audio Chipset
7.1 Channel Realtek ALC S1220A High Definition Audio CODEC

On-board LAN

LAN Chipset 1
Dual Intel 10Gb Ethernet X710-AT2
LAN Chipset 2
Realtek 1GB Ethernet
Max LAN Speed
2 x 10Gbps + 1Gbps

Rear I/O Ports

USB 2.0
2
USB 3.2 Gen 2
4 x Type-A + 1 x USB Type-C
USB 3.2 Gen 2x2
1 x USB Type-C
VGA
1
RJ45
3 (2x 10Gbps / 1x 1Gbps)
S/PDIF Out
1x Optical
Audio Ports
8-Channel Audio I/O

Front I/O Ports

USB 3.0
2
USB 3.1 Type-C
1 Top Mounted
Audio
1x Headphone, 1x Microphone

Front Mounted 5.25" Bays

RAID Bays
20

Features

On-Board Power Button
Yes
On-Board Reset Button
Yes
On-Board CMOS Clear
Yes
On-Board Diagnostic LED
Yes

Operating System

Microsoft Windows 11
Professional 64-Bit

Power Supply

Maximum Wattage
850 Watts
80 Plus Certification
80 Plus Gold Certified
Modular
Fully Modular

System Dimenions

Dimensions
Width - 9.06", Height - 24.33", Depth - 26.10"
Weight
65+ Pounds

Peripherals Included
