Sale!

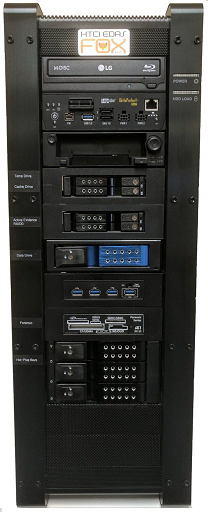

EDAS FOX Ultimate Investigator 2023 Series

$14,399.00 $11,995.00

Contact Us For ICAC Pricing

* Now with Turbulent Liquid Cooling. Lower Your Core Temps by 10-12 Degrees Celsius during the most stressful processing. Avoids Core Throttling

Add to quote loading
Categories: Forensic Computers, Meet Our Family of Computers
  • Description
  • Tech Specs
  • Customizations

Description

  • An industry setting standard of 3 years parts and depot labor warranty.
  • Two High Speed Intel Xeon Silver 4216 (16) Core Processor Clocked at 2.1 Ghz (3.2 Ghz Turbo)
  • Liquid Turbulent Processor Cooling. Lowers the temperature of the Cores during heavy processing and avoid Core Throttling that occurs during Evidence Processing
  • 128GB of High Speed, Error Checking DDR4 2666 Quad Channel Memory
  • An NVidia GeForce RTX 3060 with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
  • 1TB 32Gb/s M.2 NVMe OS Drive
  • 4x 1TB SATA 6Gbp/s SSD Drives ( Two in RAID0 for  Database, Two in RAID0 for  Temp)
  • 2x 1TB SATA 6Gbp/s SSD Drives in  RAID0 for Active Evidence
  • A High Capacity, High Speed 4TB 7200RPM 6Gbp/s Hard Disk Data Drive to store files.
  • A High Capacity (4 x 4TB) RAID5 Array
  • Intel® I210-AT, 2 x Gigabit LAN Controller(s)
  • High Speed USB 3.0 for up to 10X Faster data transfers than USB 2.0
  • 3x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
  • A Tableau T3567869iu or Logicube Write Protect Bay with USB 3.0, SATA, IDE, SAS, FireWire, and PCIe Connections and a Tableau T3iu Forensic Bay.
  • A highly efficient 1300 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
  • An External USB 3.0 Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
  • Wireless Keyboard / Mouse Combo (Wired available at no charge for DOD or other such requirements)
  • Call for pricing on requested upgrades from specifications

Supported CPU

CPU Socket Type
Intel Socket 3647
CPU Type
Dual Intel Processor Xeon Silver

CPU

Processor Number
Silver 4216
Number of Cores / Threads
16 / 32
CPU Speed
2.1GHz / 3.2GHz Turbo
Cache
22MB
Lithography
14nm
Heatsink
Liquid Turbulent Processor Cooling

Chipset

Chipset
Intel C621e

Memory

Slots
12x DIMM
Speed
DDR4-2400
Memory Installed
128GB (4 x 32GB) ECC
Maximum Memory
768GB

Expansion Slots

PCIe 3.0 x16
7

Video Card

Chipset
NVIDIA
GPU
RTX 3060
Memory
12GB GDDR6
Video Ports
1x HDMI 2.1, 3x DP 1.4a

Storage Devices

SATA 6Gb/s
10
M.2 32Gb/s
1
RAID Controller 12Gb/s
8 Channel SATA/SAS

Storage Configuration

OS Drive
1TB M.2 32Gb/s
Temp Drive
2x 1TB SATA 6Gbp/s SSD’s (RAID0)
Cache Drive
2x 1TB SATA 6Gbp/s SSD’s (RAID0)
Active Evidence Drive
2x 1TB SATA 6Gbp/s SSD’s (RAID0)
Data Drive
4TB 7200RPM SATA 6Gb/s HDD
Storage RAID
4x 4TB 7200RPM SATA 6Gb/s HDD's (RAID5)

On-Board Audio

Audio Chipset
8 Channel Realtek ALC888 High Definition Audio CODEC

On-Board LAN

LAN Chipset
2x Intel I210-AT
Max LAN Speed
10/100/1000Mbps

Rear I/O Ports

PS/2
1
RJ45
2
USB 2.0
2
USB 3.1 Gen 1
4
USB 3.1 Gen 2
1x Type-A / 1x Type-C
S/PDIF Out
1x Optical
Audio Ports
8-Channel Audio I/O

Front I/O Ports

USB 3.0
12 (2 Top Mounted, 10 Front Mounted)
USB 3.1
2x USB 3.1 Gen2 Type-C (1 Top Mounted, 1 Front Mounted)
eSATA
1x 6Gb/s eSATA
Audio
1x Headphone, 1x Microphone

Front Mounted 5.25" Bays

Optical Disk Drive
16x Blu-Ray Burner
Forensic Bridge
Tableau T356789iu or Logicube Write Protect Bay (USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe)
Forensic Bridge/Bay
Tableau T3iu
SSD Drive Bay
6x 2.5" SATA Trayless
Data Drive Bay
1x 3.5" SATA Trayless
USB 3.0 Hub
8 Ports
USB 3.0/3.1 Hub
1x Gen2 Type-C, 2x Gen1 Type-A
Hot-Swap Bay
3x 3.5" SATA Trayless
RAID Bay
4x 3.5" SATA Trayless

Features

On-Board Power Button
Yes
On-Board Reset Button
Yes
On-Board CMOS Clear
Yes
On-Board Diagnostic LED
Yes

Operating System

Microsoft Windows 10
Professional 64-Bit

Power Supply

Maximum Wattage
1300 Watts
80 Plus Certification
80 Plus Gold Certified
Modular
Fully Modular

System Dimensions

Dimensions
Width - 9.06", Height - 24.33", Depth - 26.10"
Weight
65+ Pounds

Peripherals Included

Monitor
2x 27" LED Monitors (1920x1080)
Keyboard and Mouse
Wired or Wireless Combo
Tool Kit
Multi-Piece Toolkit to assist in Digital Evidence Gathering
USB 3.0 Card Reader
Forensic Card Reader
