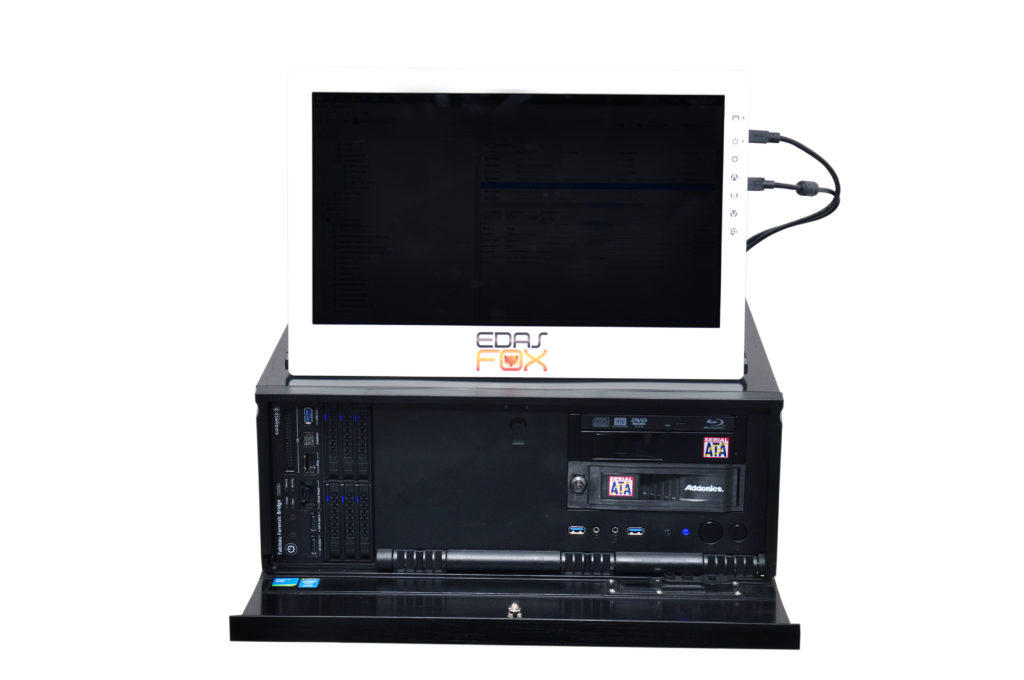

EDAS FOX Turbo Kit

Add to quote loading
Category: Meet Our Family of Computers
  • Description
  • Tech Specs
  • Customizations

Description

A Powerful Ruggedized Portable Kit made for all weather in-field digital forensic operations.
High Speed Forensic Imaging with Hardware Write-Blocked ports for IDE/SATA/SAS/SCSI/USB/Firewire/PCIe Devices
Detect and Remove HPA/DCO
Acquire Physical, Logical and Custom Content (Selected Files and Folders) with Industry Standard Hashing MD5, SHA1
All SSD Drives solution to operate at highest I/O
Create Forensic Images from Windows and MAC devices without removing internal drives great for corporate investigations.
Preview data in native environment before forensic imaging.
Data Cables, Drive Adapters and Cables and Drivers for Smart Phones

Supported CPU

CPU Socket Type
Intel Socket 2011-3
CPU Type
Intel Processor E5-2600v4 Product Family

CPU

Processor Number
E5-2630v4
Number of Cores/Threads
10 / 20
CPU Speed
2.2GHz / 3.1GHz Turbo
QPI
8GT/s
Cache
L2 10x 256KB / L3 25MB
Lithography
14nm
Heatsink
High Performance Air Cooled Solution

Chipset

Chipset
Intel C612 PCH X-99

Memory

Slots
8x DIMM
Speed
DDR4-2133
Memory Installed
64GB (4x 16GB) ECC
Maximum Memory
512GB
Channel Supported
Quad Channel

Expansion Slots

PCIe 3.0 x16
4
PCIe 3.0 x4
2

Video Card

Chipset
NVIDIA
GPU
GTX 1060
Memory
6GB GDDR5
Video Ports
1x DVI, 1x HDMI, 3x DP

Storage Devices

SATA 6Gb/s
10

Storage Configuration

OS Drive
1 x 512GB SATA 6Gb/s SSD Drive
Temp/Cache Drive
1 x 512GB SATA 6Gb/s SSD Drive
Case/Index Drive
1 x 512GB SATA 6Gb/s SSD Drive
Database Drive
1 x 512GB SATA 6Gb/s SSD Drive
Active Evidence Drive
2 x 512GB SATA 6Gb/s SSD's Drive (RAID0)

On-Board Audio

Audio Chipset
7.1 RealTek ALC1150 High Definition Audio

On-Board LAN

LAN Chipset
2x Intel I210-AT
Max LAN Speed
10/100/1000Mbps

Rear I/O Ports

PS/2
1
USB 3.0
8
RJ45
2
S/PDIF Out
1x Optical
Audio Ports
7.1-Channel Audio I/O

Front I/O Ports

USB 3.0
2
Front Audio
1x Headphone, 1x Microphone

Front Mounted Bays

Optical Disk Drive
16x Blu-Ray Burner
Forensic Bridge
Tableau T356789iu or Logicube Write Protect Bay (USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe)
SSD Drive Bay
6x 2.5" SATA Trayless
Data Drive Bay
2x SATA Trayless w/One 2.5" Adapter

Operating System

Microsoft Windows 10
Professional 64-Bit

Power Supply

Maximum Wattage
750 Watts
80 Plus Certification
80 Plus Gold Certified
Modular
Fully Modular Power Supply

System Dimensions

Dimensions
Width - 17.32", Height - 6.89", Depth - 17.13"
Weight
45+ Pounds

Peripherals Included

Monitors
1 x 15.6 Inch Portable LCD Monitor with Integrated Speaker (USB Powered & HDMI)
Keyboard / Mouse
Wireless Combo (Wired upon request)
Cables & Adapters
2.5″ IDE, 1.8″ IDE, Micro SATA, mSATA, ZIF, LIF, M.2 SSD, CAT 6 Cable, eSATA to SATA Cable, WiFi Dongle, Bluetooth Dongle.
Tool Kit
Digital Camera, Multi-Piece Toolkit to assist in Digital Evidence Gathering
