Sale!

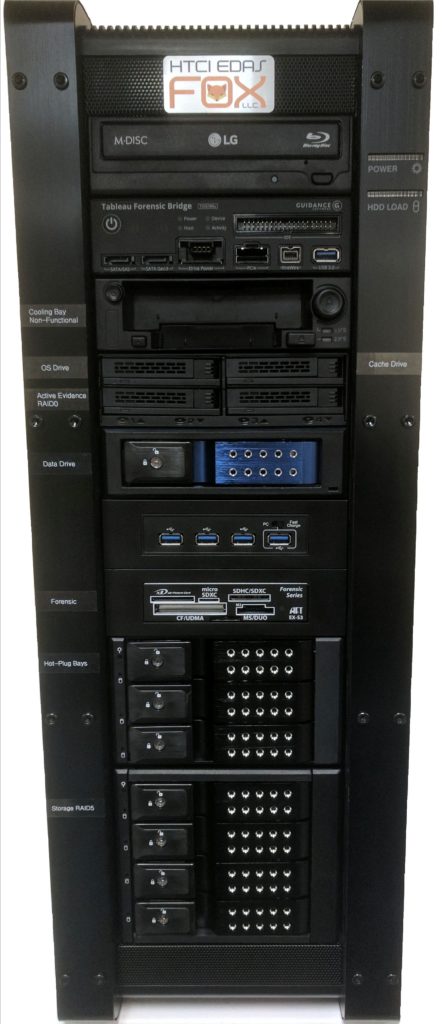

EDAS FOX Optimized With RAID 2023 Series

$12,995.00 $9,995.00

Contact Us For ICAC Pricing

*Now With Optional Turbulent Liquid Cooling. Lower Your Core Temps by 10-12 Degrees Celsius during the most stressful processing. Avoids Core Throttling

Add to quote loading
Categories: Forensic Computers, Meet Our Family of Computers
  • Description
  • Tech Specs
  • Customizations

Description

  • An industry setting standard of 3 years parts and depot labor warranty.
  • Two High Speed Intel ® Xeon Silver 4214R Twelve (12) Core Processor Clocked at 2.2Ghz (3.2Ghz Turbo)
  • Now With Optional Turbulent Liquid Cooling. Lower Your Core Temps by 10-12 Degrees Celsius during the most stressful processing. Avoids Core Throttling
  • 64GB of High Speed, Error Checking DDR4 2400 Quad Channel Memory
  • An NVidia GeForce GTX 1660 with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
  • A ultra-fast M.2 1 TB 32Gb/s NVMe OS Drive to give you lightning fast access to your EDAS FOX System
  • 1TB SSD for Temp
  • 1TB SSD for Cache/DB drive
  • 2 x 1TB SSD for Active Evidence in RAID0
  • A High Capacity, High Speed 4TB 7200 RPM 6Gbp/s Hard Disk Data Drive to store files.
  • A High Capacity (4 x 4TB), RAID5 Array Connected to a Dedicated Raid Card.
  • Intel® I210-AT, 2 x Gigabit LAN Controller(s)
  • High Speed USB 3.0 for up to 10X Faster data transfers than USB 2.0
  • 3x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
  • An External Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
  • An integrated Write-Blocked Forensic Bridge, With USB 3.0, SATA, IDE, SAS, FireWire, and PCIe Connections. Tableau or Logicube.
  • A highly efficient 1300 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
  • 2 x 24 Inch LED Monitor
  • Wireless Keyboard / Mouse Combo  (Wired available at no charge for DOD or other such requirements)
  • Call for pricing on requested upgrades from specifications

Supported CPU

CPU Socket Type
Intel Socket 3647
CPU Type
Dual Intel Processor Xeon Silver

CPU

Processor Number
Silver 4214R
Number of Cores / Threads
12 / 24
CPU Speed
2.4GHz / 3.5GHz Turbo
Cache
16.5 MB
Lithography
14nm
Heatsink
Premium Grade Quiet Air Cooling Solutions
Heatsink Option
Now With Optional Turbulant Liquid Cooling. Lower Your Core Temps by 10-12 Degrees Celsius during the most stressful processing. Avoids Core Throttling

Chipset

Chipset
Intel C621

Memory

Slots
12x DIMM
Speed
DDR4-2400
Memory Installed
64GB (4 x 16GB) ECC
Maximum Memory
768GB
Channel Supported
Quad Channel

Expansion Slots

PCIe 3.0 x16
7

Video Card

Chipset
NVIDIA
GPU
GTX 1660
Memory
6GB GDDR6
Video Ports
1x HDMI, 3x DP

Storage Devices

SATA 6Gb/s
10
M.2 32Gb/s
1
RAID Controller 12Gb/s
8 Channel SATA/SAS

Storage Configuration

OS Drive
1TB M.2 32Gb/s
Temp Drive
1TB SATA 6Gbp/s SSD
Cache Drive
1TB SATA 6Gbp/s SSD
Active Evidence
2x 1TB SATA 6Gbp/s SSD’s (RAID0)
Data Drive
4TB 7200RPM SATA 6Gb/s HDD
Storage RAID
4x 4TB 7200RPM SATA 6Gb/s HDD's (RAID5)

On-Board Audio

Audio Chipset
8 Channel Realtek ALC888 High Definition Audio CODEC

On-Board LAN

LAN Chipset
2x Intel I210-AT
Max LAN Speed
10/100/1000Mbps

Rear I/O Ports

PS/2
1
RJ45
2
USB 2.0
2
USB 3.1 Gen 1
4
USB 3.1 Gen 2
1x Type-A / 1x Type-C
S/PDIF Out
1x Optical
Audio Ports
8-Channel Audio I/O

Front I/O Ports

USB 3.0
12 (2 Top Mounted, 10 Front Mounted)
USB 3.1
2x USB 3.1 Gen2 Type-C (1 Top Mounted, 1 Front Mounted)
Audio
1x Headphone, 1x Microphone

Front Mounted 5.25" Bays

Optical Disk Drive
16x Blu-Ray Burner
Forensic Bridge
Tableau T356789iu or Logicube Write Protect Bay (USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe)
Cooling Bay
2.5"/3.5" Hard Drive Cooling Bay For Imaging
SSD Drive Bay
4x 2.5" SATA Trayless
Data Drive Bay
1x 3.5" SATA Trayless
USB 3.0 Hub
8 Ports
USB 3.1 Hub
1x Gen2 Type-C, 2x Gen1 Type-A
Hot-Swap Bay
3x 3.5" SATA Trayless
RAID Bay
4x 3.5" SATA Trayless

Features

On-Board Power Button
Yes
On-Board Reset Buttton
Yes
On-Board CMOS Reset
Yes
On-Board Diagnostic LED
Yes

Operating System

Microsoft Windows 10
Professional 64-Bit

Power Supply

Maximum Wattage
1300 Watts
80 Plus Certification
80 Plus Gold Certified
Modular
Fully Modular

System Dimensions

Dimensions
Width - 9.06", Height - 24.33", Depth - 26.10"
Weight
65+ Pounds

Peripherals Included

Monitor
2x 24" LED Monitors (1920x1080)
Keyboard and Mouse
Wired or Wireless Combo
Tool Kit
Multi-Piece Toolkit to assist in Digital Evidence Gathering
USB 3.0 Card Reader
Forensic Card Reader
