Supported CPU
CPU Socket Type
Intel Socket 3647
CPU Type
Dual Intel Xeon Scalable Gold Processor Family
CPU
Processor Number
Gold 6226R
Number of Cores / Threads
16 / 32
CPU Speed
2.9GHz / 3.9GHz Turbo
Cache
22MB
Lithography
14nm
Heatsink
High Performance Air Cooled Solution
Chipset
Chipset
Intel C621E
Memory
Slots
12x DIMM
Speed
DDR4-3200
Memory Installed
256GB (8 x 32GB) ECC
Maximum Memory
768GB
Channel Supported
Quad Channel
Expansion Slots
PCIe 3.0 x16
7
Video Card
Chipset
NVIDIA
GPU
RTX 4080
Memory
16GB GDDR6
Video Ports
1x HDMI, 3x DP
Storage Devices
SATA 6Gb/s
10
M.2 32Gb/s
1
RAID Controller
PCIe RAID Controllers
2x 12GB/s SATA/SAS
Storage Configuration
OS Drive
3x 1TB SATA 6Gb/s SSDs (RAID5)
Storage RAID
10x 10TB 7200RPM SATA 6Gb/s HDDs (RAID10)
On-Board Audio
Audio Chipset
8 Channel Realtek ALC888 High Definition Audio CODEC
On-Board LAN
LAN Chipset
2x Intel I210-AT Gigabit LAN Controllers (10/100/1000Mbps)
Add-On LAN
LAN Chipset
Intel Ethernet Controller X540 2 x SFP+ 10GbE Ports
Rear I/O Ports
PS/2
1
RJ45
2
USB 2.0
2
USB 3.1
4x Gen1
S/PDIF Out
1x Optical
Audio Ports
8-Channel Audio I/O
Front I/O Ports
USB 2.0
2
USB 3.0
7
Front Mounted 5.25" Bays
SSD Drive Bay
4x 2.5" SATA
USB 3.0 Hub
7 Ports
RAID Cage 1
5x 3.5" SATA/SAS Trayless
RAID Cage 2
5x 3.5" SATA/SAS Trayless
Features
On-Board Power Button
Yes
On-Board Reset Button
Yes
On-Board CMOS Clear
Yes
On-Board Diagnostic LED
Yes
Operating System
Microsoft Windows
Server 2022
Power Supply
Maximum Wattage
1000 Watt 80 Plus Gold
System Dimensions
Dimensions
Width - 19", Height - 7", Depth - 27.90"
Weight
65+ Pounds
Software Pre-Installed
Backup Software
Acronis Server Edition w/3 Year License

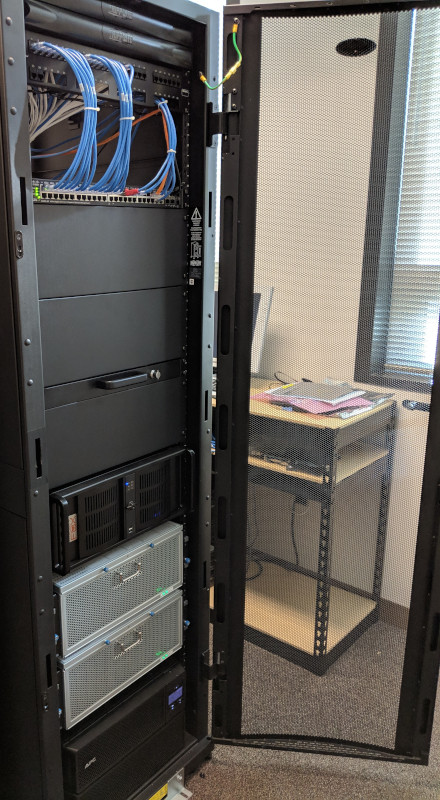

Server Cabinet Details
Server Rack
42U
Storage Servers
2x 600TB (60x 10TB SATA 12Gb/s Helium Drives)(Up To 2.4PB)
UPS
APC Smart-UPS 10000VA
KVM
17" 8 Port 1U Rackmountable LCD Console
Switch
Cisco 48 Port Managed Switch
