Sale!

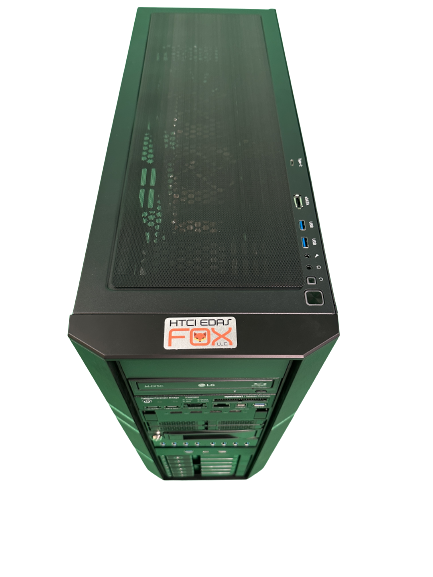

EDAS FOX Optimized

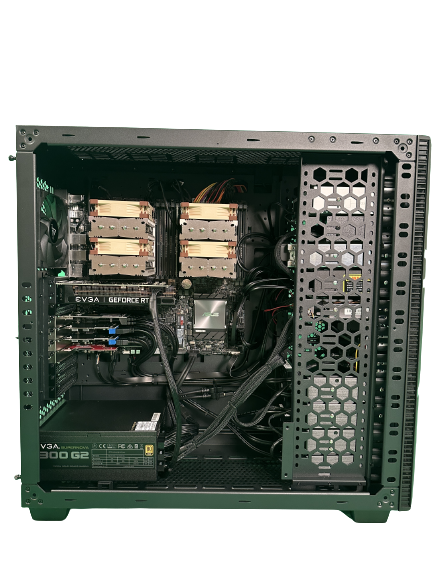

EDAS FOX Optimized - Image 2

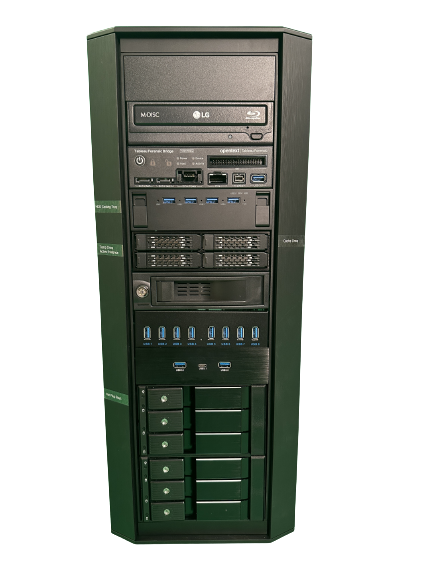

EDAS FOX Optimized - Image 3

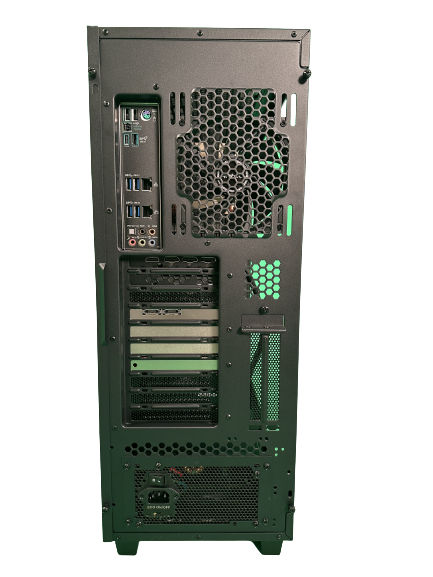

EDAS FOX Optimized - Image 4

EDAS FOX Optimized

$13,295.00 Original price was: $13,295.00.$10,995.00Current price is: $10,995.00.

Contact Us For ICAC Pricing



Add to quote loading
Categories: Intel Forensic Computers, Meet Our Family of Computers
  • Description
  • Tech Specs

Description

  • An industry setting standard of 3 years parts and depot labor warranty.
  • High Speed Intel ® Xeon W7-2495X (24) Core Processor Clocked at 2.5Ghz (4.8Ghz Turbo)
  • 128GB of High Speed, Error Checking DDR5-4800
  • An NVidia GeForce RTX 3060 with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
  • A ultra-fast 2TB NVMe M.2 OS Drive to give you lightning fast access to your EDAS FOX System
  • 2TB SSD for Temp Drive
  • 2TB SSD for Cache Drive
  • 2x 2TB NVMe M.2 (Two in RAID0 for Active Evidence)
  • A High Capacity, High Speed 4TB 7200RPM 6Gb/s Hard Disk Data Drive to store files.
  • Intel® X710-AT, 2 x 10 Gigabit LAN Controller(s)
  • High Speed USB 3.1 Gen2 Type-C located on the front I/O, greatly improving the speed of the onboard USB 2.0 ports.
  • 6 x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
  • An Integrated Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
  • An integrated Write-Blocked Forensic Bridge, With USB 3.0, SATA, IDE, SAS, FireWire, and PCIe Connections. Tableau T356789iu or Logicube Write Protect Bay.
  • A highly efficient 1000 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
  • 2 x 27 Inch LED Monitors
  • Wireless Keyboard / Mouse Combo (Wired available at no charge for DOD or other such requirements)
  • Call for pricing on requested upgrades from specifications

Supported CPU

CPU Socket Type
Intel Socket 4677
CPU Type
Intel Processor Xeon W7

CPU

Processor Number
W7-2495X
Number of Cores / Threads
24 / 48
CPU Speed
2.5GHz / 4.8GHz Turbo
Cache
45MB
Lithography
7nm
Heatsink
High Performance Liquid Cooled Solution

Chipset

Chipset
Intel W790

Memory

Slots
8x DIMM
Speed
DDR5-4800
Memory Installed
128GB (2 x 64GB) ECC
Maximum Memory
2TB

Expansion Slots

PCIe x16
7

Video Card

Chipset
NVIDIA
GPU
RTX 3060
Memory
12GB GDDR6
Video Ports
1x HDMI / 3x DP

Storage Devices

SATA 6Gb/s
8
M.2 32Gb/s
3
SlimSAS
2

Storage Configuration

OS Drive
2TB NVMe M.2
Temp Drive
2TB SATA 6Gb/s SSD
Cache Drive
2TB SATA 6Gb/s SSD
Active Evidence
2 x 2TB NVMe M.2 (RAID0)
Data Drive
4TB 7200RPM SATA 6Gb/s HDD

On-Board Audio

Audio Chipset
Realtek® S1220A 7.1-Channel High Definition Audio CODEC

On-Board LAN

LAN Chipset
Dual Intel 10Gb Ethernet X710-AT2
LAN Chipset 2
Realtek 1GB Ethernet
Max LAN Speed
2 x 10Gbps + 1Gbps

Rear I/O Ports

RJ45
3
USB 2.0
2
USB 3.2 Gen 2
4x Type-A / 1x Type-C
USB 3.2 Gen 2x2
1x Type-C
S/PDIF Out
1x Optical
Audio Ports
5

Front I/O Ports

USB 3.0
16 (2 Top Mounted, 14 Front Mounted)
USB 3.1
2x USB 3.1 Gen2 Type-C (1 Top Mounted, 1 Front Mounted)
Audio
1x Headphone, 1x Microphone

Front Mounted 5.25" Bays

Optical Disk Drive
16x Blu-Ray Burner
Forensic Bridge
Tableau T356789iu or Logicube Write Protect Bay (USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe)
Cooling Bay
Hard Drive Cooling Tray w/2x Fans and 4x USB 3
SSD Drive Bay
4x 2.5" SATA Trayless
Data Drive Bay
1x 3.5" SATA Trayless
USB 3.0 Hub
8 Ports
USB 3.1 Hub
1x Gen2 Type-C, 2x Gen1 Type-A
Hot-Swap Bay
6x 3.5" SATA Trayless

Features

On-Board Power Button
Yes
On-Board Reset Button
Yes
On-Board CMOS Clear
Yes
On-Board Diagnostic LED
Yes

Operating System

Microsoft Windows 11
Professional 64-Bit

Power Supply

Maximum Wattage
1000 Watts
80 Plus Certification
80 Plus Gold Certified
Modular
Fully Modular

System Dimesions

Dimensions
Width - 9.06", Height - 24.33", Depth - 26.10"
Weight
65+ Pounds

Peripherals Included

Monitor
2x 27" LED Monitors (1920x1080)
Keyboard and Mouse
Wired or Wireless Combo
Tool Kit
Multi-Piece Toolkit to assist in Digital Evidence Gathering
USB 3.0 Card Reader
Forensic Card Reader
