Supported CPU
CPU Socket Type
AMD sTR5
CPU Type
Threadripper 9000 Series
CPU
Processor Number
Threadripper 9980X
Number of Cores / Threads
64/128
CPU Speed
3.2GHz / 5.4GHz Turbo
Cache
5MB L1 / 64MB L2 / 256MB L3
Heatsink
High Performance Liquid Cooled Solution
Memory
Slots
4 x DIMM
Memory Installed
128GB ECC
Maximum Memory
512GB
Expansion Slots
PCIe 5.0 x16
3
PCIe 4.0 x16
2
Video Card
Chipset
NVIDIA
GPU
RTX 5080
Memory
16GB GDDR7
Video Ports
1x HDMI, 3x DP
Storage Devices
SATA 6Gb/s
4
M.2 32Gb/s
3
SlimSAS
1
Storage Configuration
OS Drive
2TB NVMe M.2
Temp Drive
4TB NVMe M.2
Cache Drive
4TB NVMe M.2
Active Evidence
2 x 4 TB NVMe M.2 (RAID0)
Data Drive
20TB 7200RPM SATA 6Gb/s HDD
On-Board Audio
Audio Chipset
Realtek ALC1220P Surround Sound High Definition Audio CODEC
On-Board LAN
LAN Chipset
1 x Marvell® AQtion 10Gb Ethernet
LAN Chipset 2
1 x Intel® I226-LM 2.5Gb Ethernet
Wireless and Bluetooth
Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. Bluetooth® v5.4
Rear I/O Ports
RJ45
2
USB 2.0
2
USB 20Gbps port (Type-C®)
1
USB 10Gbps ports (Type-A)
6
Audio Ports
2 (Line Out, Mic In)
Front I/O Ports
USB 3.0
9 (2 Top Mounted, 4 Front Mounted 3 additional system ports)
USB 3.2
5x USB 3.2 Gen2 Type-C (1 Top Mounted, 4 additional system ports)
Audio
1x Headphone, 1x Microphone

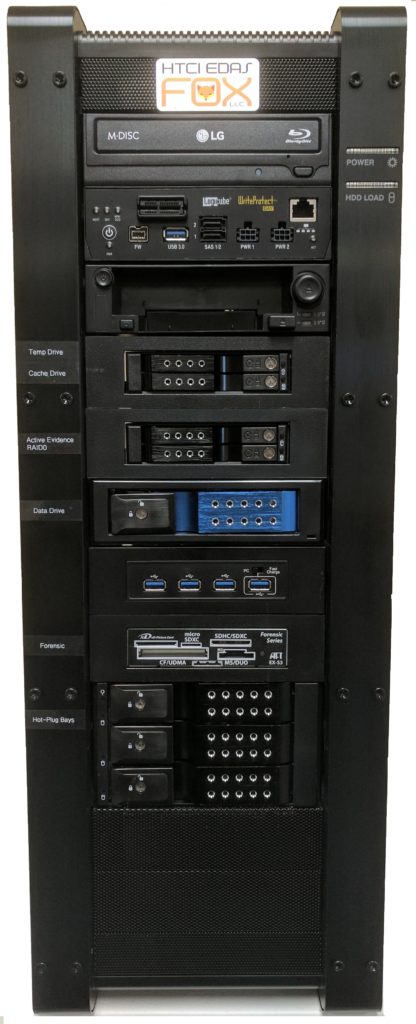

Front Mounted 5.25" Bays
Forensic Bridge
Tableau T356789iu or Logicube Write Protect Bay (USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe)
Forensic Bridge
Tableau T3iu (SATA Only)
Imaging Shelf
Hard Drive Cooling Tray w/2x Fans and 4x USB 3
Hot-Swap Bay
7x 3.5" SATA Trayless
Features
On-Board Power Button
Yes
On-Board Reset Button
Yes
On-Board CMOS Clear
Yes
On-Board Diagnostic LED
Yes
Operating System
Microsoft Windows 11
Professional 64-Bit
Power Supply
Maximum Wattage
1200 Watts
80 Plus Certification
80 Plus Gold Certified
Modular
Fully Modular
System Dimesions
Dimensions
Width - 9.06", Height - 24.33", Depth - 26.10"
Weight
65+ Pounds
Peripherals Included
Monitor
2x 27" LED Monitors (1920x1080)
Keyboard and Mouse
Wired or Wireless Combo
Tool Kit
Multi-Piece Toolkit to assist in Digital Evidence Gathering
External Card Reader
USB 3.0 Forensic Multi Card Reader
External USB System Hub
7 Port USB 3.2 Gen 2 Type-C Hub w/ ESD Surge Protection (3x Type-A, 4x Type-C)
