Description

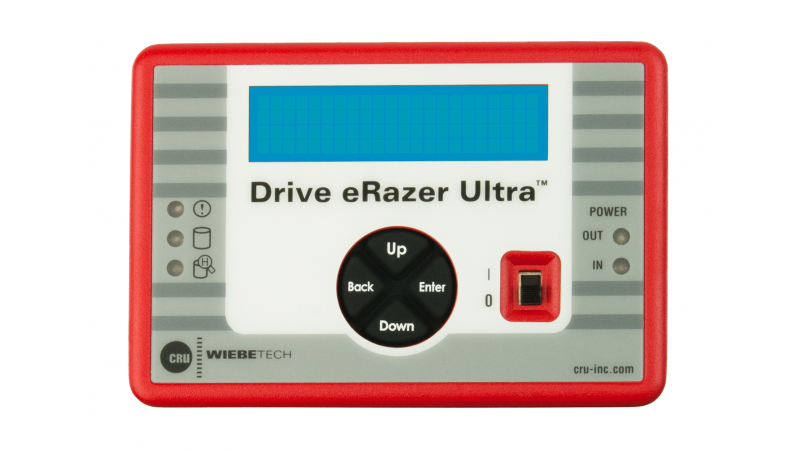

Product name Drive eRazer Ultra
Patent U.S. Patent No. 8,090,904
Host (I/O) Ports (1) USB 2.0: up to 480 Mbps
(1) DB9 female serial connector
Drive Types Supported
PATA/IDE 2.5″ drives (with PATA Adapter 25)
PATA/IDE 3.5
SATA 2.5″ drives
SATA 3.5″ drives
SATA SSD (solid state drives)
Hitachi 1.8″ drives (with PATA Adapter 25)
Toshiba 1.8″ drives (with PATA Adapter 18-TOSH)
MacBook Air 2010 (with SATA Adapter MBA2010)
MSATA (with SATA Adapter mSATA)
Mini PCIe PATA (with PATA Adapter mPCIe)
Mini PCIe SATA (with PATA Adapter mPCIe)
Mini PCIe USB (with PATA Adapter mPCIe)
Supports S.M.A.R.T. disk info Yes
Number of LEDs 5
Description of LEDs Drive access, HPA/DCO detected, error, power input status, power output status
LCD Screen Two-line backlit LCD controlled with four soft-touch menu navigation buttons
LCD Info 2 lines x 16 characters width
LCD Backlight Yes
Navigation menu LCD/button driven menu system
Printer Ports 1
Printer info (1) DB9 female serial connector
Detects/reports HPA/DCO Yes
Allows HPA/DCO override Yes, user-configurable options
Construction material(s) Rugged aluminum construction
Power switch 2 position: On / Off
Dimensions 2.95″ x 4.33″ x 1.06″ (75mm x 110mm x 27mm)
Weight 0.40 lbs. (0.18 kg)
Erase modes Quick Erase, Custom Erase, Random Erase, Secure Erase Normal, Secure Erase Enhanced, DoD Clear, DoD Sanitize, NIST800-88 Clear, NIST800-88 Purge, CSEC ITSG-06, HMG IS5, DSD ISM 6.2.92
Compliancy FCC, CE, RoHS, C-Tick, RCM
Warranty CRU provides a 3-year limited warranty for this product.
